CameraWe put the Samsung Galaxy Z Fold6 through our rigorous DXOMARK Display test suite to measure its performance across four criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.
Overview
Key display specifications
- 7.6 inches AMOLED 2X
- Dimensions: 132.6 x 153.5 x 5.6mm
- Resolution: 1856 x 2160 pixels, (~374 ppi density)
- Aspect ratio: 20.0:18
- Refresh rate: 120 Hz
Scoring
Sub-scores and attributes included in the calculations of the global score.
Samsung Galaxy Z Fold6
154
display
149
164
Best: Samsung Galaxy S24 Ultra (164)
159
165
Best: Google Pixel 8 (165)
165
135
164
Best: Google Pixel 7 Pro (164)
Position in Global Ranking
6th
6th
1. Google Pixel 9 Pro XL
158
1. Google Pixel 9 Pro
158
3. Honor Magic6 Pro
157
4. Google Pixel 9
156
5. Samsung Galaxy S24 Ultra
155
6. Google Pixel 8 Pro
154
6. Samsung Galaxy Z Fold6
154
6. Samsung Galaxy S24+ (Exynos)
154
6. Samsung Galaxy S24 (Exynos)
154
10. Google Pixel 8
153
10. Vivo X100 Pro
153
12. Google Pixel 9 Pro Fold
152
13. Apple iPhone 15 Pro Max
151
13. Apple iPhone 15 Pro
151
13. Honor Magic V2
151
13. Honor Magic5 Pro
151
13. Honor 200 Pro
151
18. Apple iPhone 16 Pro Max
150
18. Apple iPhone 16 Pro
150
18. Samsung Galaxy Z Flip6
150
21. Honor Magic V3
149
21. Samsung Galaxy S23
149
23. Google Pixel 7 Pro
148
23. Huawei Pocket 2
148
23. Huawei Mate 60 Pro+
148
23. Huawei Mate 60 Pro
148
23. Samsung Galaxy S23 Ultra
148
28. Honor 200
147
28. Samsung Galaxy S23+
147
28. Samsung Galaxy A55 5G
147
31. Apple iPhone 14 Pro Max
146
31. Apple iPhone 14 Pro
146
33. Google Pixel Fold
145
33. Google Pixel 8a
145
33. Samsung Galaxy S24 FE
145
33. Vivo X Fold3 Pro
145
37. Oppo Find X7 Ultra
144
37. Samsung Galaxy Z Flip5
144
39. Asus Zenfone 11 Ultra
143
39. Huawei P60 Pro
143
39. Samsung Galaxy A35 5G
143
39. Xiaomi 14T Pro
143
43. Apple iPhone 16
142
43. Apple iPhone 13 Pro Max
142
43. Oppo Find N2 Flip
142
43. Samsung Galaxy Z Fold5
142
43. Xiaomi 14T
142
48. Apple iPhone 13 Pro
141
49. Apple iPhone 15 Plus
140
49. Apple iPhone 15
140
49. Honor 90
140
49. Samsung Galaxy S23 FE
140
49. Xiaomi 14 Ultra
140
54. Apple iPhone 14 Plus
138
54. Apple iPhone 14
138
54. Honor Magic4 Ultimate
138
54. Oppo Find X6 Pro
138
58. OnePlus Open
137
58. Oppo Find X5 Pro
137
58. Vivo X Fold
137
58. Xiaomi 14
137
62. Google Pixel 7
136
62. Honor Magic Vs
136
62. Motorola Edge 50 Neo
136
65. Apple iPhone 13
135
65. Google Pixel 7a
135
65. Samsung Galaxy S22 Ultra (Snapdragon)
135
65. Vivo X90 Pro+
135
65. Xiaomi Redmi Note 13 Pro Plus 5G
135
70. Huawei P50 Pro
134
70. Nothing Phone (2)
134
70. Samsung Galaxy S22+ (Exynos)
134
73. Huawei Mate 50 Pro
133
73. Samsung Galaxy Z Flip4
133
73. Samsung Galaxy S22 Ultra (Exynos)
133
73. Samsung Galaxy S22 (Snapdragon)
133
73. Vivo X80 Pro (MediaTek)
133
78. Asus ROG Phone 7
132
78. Samsung Galaxy S22 (Exynos)
132
78. Vivo X90 Pro
132
78. Xiaomi Mix Fold 3
132
78. Xiaomi 13
132
83. Samsung Galaxy S21 Ultra 5G (Exynos)
131
83. Sony Xperia 5 IV
131
83. Vivo X80 Pro (Snapdragon)
131
83. Xiaomi 13 Pro
131
87. Apple iPhone 13 mini
130
87. Google Pixel 6 Pro
130
87. Honor Magic4 Pro
130
87. Oppo Find X5
130
87. Realme GT 2 Pro
130
87. Samsung Galaxy Z Fold4
130
87. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
87. Samsung Galaxy S21 FE 5G (Snapdragon)
130
87. Vivo X70 Pro+
130
87. Xiaomi 13 Ultra
130
87. Xiaomi 12T
130
98. Samsung Galaxy A54 5G
129
98. Xiaomi 13T Pro
129
98. Xiaomi 13T
129
101. Oppo Find N2
128
102. Apple iPhone 12 Pro Max
127
102. Asus ROG Phone 6
127
102. Sony Xperia 5 V
127
102. Xiaomi 12T Pro
127
106. Asus Zenfone 10
126
106. Oppo Find X6
126
106. Sony Xperia 1 IV
126
106. Vivo X60 Pro 5G (Snapdragon)
126
110. Google Pixel 6a
125
110. Google Pixel 6
125
110. Honor 70
125
110. Oppo Find X3 Pro
125
110. Xiaomi Mi 11 Ultra
125
110. Xiaomi Mi 11
125
110. Xiaomi 12S Ultra
125
117. Apple iPhone 12 Pro
124
117. Motorola Razr 50
124
117. OnePlus 11
124
117. OnePlus 10 Pro
124
117. OnePlus 9 Pro
124
117. Oppo Reno8 5G
124
123. Motorola Edge 30 Pro
123
123. Oppo Reno8 Pro 5G
123
123. Oppo Find X3 Neo
123
123. Xiaomi 12 Pro
123
127. Apple iPhone 11 Pro Max
122
127. Motorola Edge 40 Pro
122
127. Nothing Phone(1)
122
130. Apple iPhone 12
121
131. Apple iPhone SE (2022)
120
131. Realme GT 5G
120
133. Fairphone 5
119
133. Xiaomi 12
119
135. Asus Zenfone 8
115
135. Oppo Reno6 5G
115
137. Realme GT Neo 2 5G
114
137. Samsung Galaxy A52 5G
114
139. Motorola Razr 40 Ultra
113
139. Oppo Find X5 Lite
113
141. POCO F4 GT
111
142. Crosscall Stellar-X5
109
143. Samsung Galaxy A53 5G
108
144. Sony Xperia 10 V
105
145. Sony Xperia 10 IV
104
146. Xiaomi Mi 10 Ultra
103
147. Black Shark 5 Pro
100
148. Vivo X80 Lite 5G
99
149. Samsung Galaxy A22 5G
82
Position in Ultra-Premium Ranking
5th
5th
1. Google Pixel 9 Pro XL
158
1. Google Pixel 9 Pro
158
3. Honor Magic6 Pro
157
4. Samsung Galaxy S24 Ultra
155
5. Google Pixel 8 Pro
154
5. Samsung Galaxy Z Fold6
154
5. Samsung Galaxy S24+ (Exynos)
154
8. Vivo X100 Pro
153
9. Google Pixel 9 Pro Fold
152
10. Apple iPhone 15 Pro Max
151
10. Apple iPhone 15 Pro
151
10. Honor Magic V2
151
10. Honor Magic5 Pro
151
14. Apple iPhone 16 Pro Max
150
14. Apple iPhone 16 Pro
150
14. Samsung Galaxy Z Flip6
150
17. Honor Magic V3
149
18. Google Pixel 7 Pro
148
18. Huawei Pocket 2
148
18. Huawei Mate 60 Pro+
148
18. Huawei Mate 60 Pro
148
18. Samsung Galaxy S23 Ultra
148
23. Samsung Galaxy S23+
147
24. Apple iPhone 14 Pro Max
146
24. Apple iPhone 14 Pro
146
26. Google Pixel Fold
145
26. Vivo X Fold3 Pro
145
28. Oppo Find X7 Ultra
144
28. Samsung Galaxy Z Flip5
144
30. Asus Zenfone 11 Ultra
143
30. Huawei P60 Pro
143
32. Apple iPhone 13 Pro Max
142
32. Oppo Find N2 Flip
142
32. Samsung Galaxy Z Fold5
142
35. Apple iPhone 13 Pro
141
36. Apple iPhone 15 Plus
140
36. Xiaomi 14 Ultra
140
38. Apple iPhone 14 Plus
138
38. Honor Magic4 Ultimate
138
38. Oppo Find X6 Pro
138
41. OnePlus Open
137
41. Oppo Find X5 Pro
137
41. Vivo X Fold
137
44. Honor Magic Vs
136
45. Samsung Galaxy S22 Ultra (Snapdragon)
135
45. Vivo X90 Pro+
135
47. Huawei P50 Pro
134
47. Samsung Galaxy S22+ (Exynos)
134
49. Huawei Mate 50 Pro
133
49. Samsung Galaxy Z Flip4
133
49. Samsung Galaxy S22 Ultra (Exynos)
133
49. Vivo X80 Pro (MediaTek)
133
53. Asus ROG Phone 7
132
53. Vivo X90 Pro
132
53. Xiaomi Mix Fold 3
132
56. Samsung Galaxy S21 Ultra 5G (Exynos)
131
56. Sony Xperia 5 IV
131
56. Vivo X80 Pro (Snapdragon)
131
56. Xiaomi 13 Pro
131
60. Google Pixel 6 Pro
130
60. Honor Magic4 Pro
130
60. Oppo Find X5
130
60. Samsung Galaxy Z Fold4
130
60. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
60. Vivo X70 Pro+
130
60. Xiaomi 13 Ultra
130
67. Oppo Find N2
128
68. Apple iPhone 12 Pro Max
127
68. Asus ROG Phone 6
127
68. Sony Xperia 5 V
127
71. Oppo Find X6
126
71. Sony Xperia 1 IV
126
73. Oppo Find X3 Pro
125
73. Xiaomi Mi 11 Ultra
125
73. Xiaomi 12S Ultra
125
76. Apple iPhone 12 Pro
124
76. Motorola Razr 50
124
76. OnePlus 10 Pro
124
76. OnePlus 9 Pro
124
80. Xiaomi 12 Pro
123
81. Apple iPhone 11 Pro Max
122
81. Motorola Edge 40 Pro
122
83. Motorola Razr 40 Ultra
113
84. Crosscall Stellar-X5
109
85. Xiaomi Mi 10 Ultra
103
Pros
- Well-suited brightness and good color fidelity for HDR10 content, providing an excellent video experience
- Good brightness levels and readability for the tested lighting conditions.
- Smooth interactions in every use case
Cons
- Visible crease in most situations
- Frequent unwanted touches
Samsung continues to push the display performance of its foldable series of phones to the limits, with the Galaxy Z Fold6 earning a top spot in our foldable ranking so far thanks to strong results in video and color.
The Z Fold6’s display stood out with its excellent video-watching experience, with the device reaching a top score in this attribute. Brightness was well-suited to most conditions, with screen colors maintaining their fidelity. The HDR10 rendering was also very smooth and showed nearly no frame mismatches.
The Z Fold6 display’s luminance in outdoor conditions was the brightest when compared with other foldables, especially in sunlight, making the screen almost fully readable. The screen was able to reach a peak brightness of 2,564 cd/m², overtaking the Vivo X Fold3’s 2,340 cd/m2, which had been the highest for a foldable. Although the Z Fold6 is not equipped with an anti-reflective film like some of its competitors, it was very readable in various conditions.
The Z Fold6 screen’s visible crease, high reflection and frequent execution of unwanted touches slightly detracted from an overall excellent display performance from a foldable phone.
Test summary
About DXOMARK Display tests: For scoring and analysis, a device undergoes a series of objective and perceptual tests in controlled lab and real-life conditions. The DXOMARK Display score takes into account the overall user experience the screen provides, considering the hardware capacity and the software tuning. In testing, only factory-installed video and photo apps are used. More in-depth details about how DXOMARK tests displays are available in the article “A closer look at DXOMARK Display testing.”
The following section focuses on the key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Full reports with detailed performance evaluations are available upon request. To order a copy, please contact us.
Readability
149
Samsung Galaxy Z Fold6
164
Samsung Galaxy S24 Ultra
How Display Readability score is composed
Readability evaluates the user’s ease and comfort of viewing still content, such as photos or a web page, on the display under different lighting conditions. Our measurements run in the labs are completed by perceptual testing and analysis.
Luminance under various lighting conditions
This graph shows the screen luminance in environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Contrast under various lighting conditions
This graph shows the screen’s contrast levels in lighting environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Luminance vs Viewing Angle
This graph presents how the luminance drops as viewing angles increase.
Skin-tone rendering in an indoor (1000 lux) environment
From left to right: Samsung Galaxy Z Fold6, Samsung Galaxy Z Fold5, OnePlus Open
(Photos for illustration only)
Skin-tone rendering in a sunlight (>90 000 lux) environment
From left to right: Samsung Galaxy Z Fold6, Samsung Galaxy Z Fold5, OnePlus Open
(Photos for illustration only)
Average Reflectance (SCI) Samsung Galaxy Z Fold6
6.3 %
Low
Good
Bad
High
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Average reflectance is computed based on the spectral reflectance in the visible spectrum range (see graph below) and human spectral sensitivity.
Average reflectance is computed based on the spectral reflectance in the visible spectrum range (see graph below) and human spectral sensitivity.
Reflectance (SCI)
Wavelength (horizontal axis) defines light color, but also our capacity to see it; for example, UV is a very low wavelength that the human eye cannot see; Infrared is a high wavelength that the human eye also cannot see). White light is composed of all wavelengths between 400 nm and 700 nm, i.e. the range the human eye can see. Measurements above show the reflection of the devices within the visible spectrum range (400 nm to 700 nm).

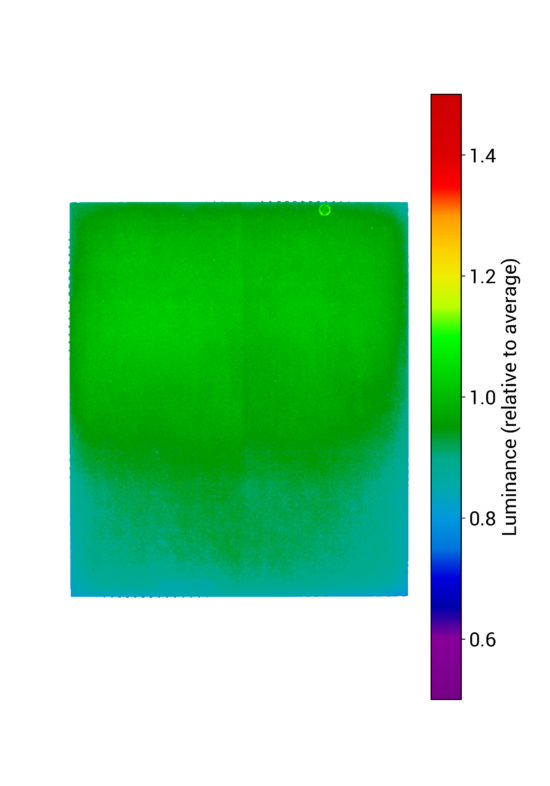

Uniformity
This graph shows the distribution of luminance throughout the entire display panel. Uniformity is measured with a 20% gray pattern, with bright green indicating ideal luminance. An evenly spread-out bright green color on the screen indicates that the display’s brightness is uniform. Other colors indicate a loss of uniformity.
PWM Frequency Samsung Galaxy Z Fold6
480 Hz
Bad
Good
Bad
Great
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the most important modulation. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue.
Color
159
Samsung Galaxy Z Fold6
165
Google Pixel 8
How Display Color score is composed
Color evaluations are performed in different lighting conditions to see how well the device manages color with the surrounding environment. Devices are tested with sRGB and Display-P3 image patterns. Both faithful mode and default mode are used for our evaluation. Our measurements run in the labs are completed by perceptual testing & analysis.
White point color under D65 illuminant at 830 lux
This graph shows the white point coordinates for the image pattern using the default or the faithful mode. D65 illuminant (6500 Kelvin) is a standard that defines the color of white at midday; it is used for display calibration as a white reference, therefore devices are expected to be at or close to the D65 white point.
Color fidelity
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes. The tested color mode is the most faithful proposed by each device, and a color correction is applied to account for the different white points of each device.
White color shift with angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Circadian Action Factor Samsung Galaxy Z Fold6
0.73
Good
Good
Bad
Bad
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
The circadian action factor is a metric that defines how light impacts the human sleep cycle. It is the ratio of the light energy contributing to sleep disturbances (centered around 450 nm, representing blue light) over the light energy contributing to our perception (covering 400 nm to 700 nm and centered on 550 nm, which is green light). A high circadian action factor means that the ambient light contains strong blue-light energy and is likely to affect the body’s sleep cycle, while a low circadian action factor implies the light has weak blue-light energy and is less likely to affect sleeping patterns.
Spectrum of white emission with Night mode ON
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
Spectrum of white emission with Night mode OFF
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
How Display Video score is composed
The video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling in indoor and low-light conditions . Our measurements run in the labs are completed by perceptual testing and analysis.
Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.
Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.
Video rendering in a low-light (0 lux) environment
Clockwise from top left: Samsung Galaxy Z Fold6, Samsung Galaxy Z Fold5, OnePlus Open
(Photos for illustration only)
Video rendering under indoor (1000 lux) environment
Clockwise from top left: Samsung Galaxy Z Fold6, Samsung Galaxy Z Fold5, OnePlus Open
(Photos for illustration only)
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
Gamut coverage for video content under 0 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
Gamut coverage for video content under 830 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
SDR Video Frame Drops FHD at 30 fps
0.1 %
Few
Good
Bad
Many
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
HDR Video Frame Drops UHD at 30 fps
0.1 %
Few
Good
Bad
Many
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
These gauges present the percentage of frame irregularities in a 30-second video. These irregularities are not necessarily perceived by users (unless they are all located at the same time stamp) but are an indicator of performance.
Touch
135
Samsung Galaxy Z Fold6
164
Google Pixel 7 Pro
How Display Touch score is composed
We evaluate the touch attributes under many types of contents where touch is key, and requires different behaviors such as gaming (quick touch to response time), web (smooth scrolling of the page) and images (accurate and smooth navigation from one image to another).
Average Touch Response Time Samsung Galaxy Z Fold6
71 ms
Fast
Good
Bad
Slow
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold5
OnePlus Open
Touch To Display response time
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
