We put the OnePlus Open through our rigorous DXOMARK Display test suite to measure its performance across six criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.
Overview
Key display specifications:
- 7.82 inches Flexi-fluid AMOLED, (~90.4% screen-to-body ratio)
- Dimensions: 153.4 x 73.3 x 11.7 mm (6.04 x 2.89 x 0.46 inches) closed
- Resolution: 2268 x 2440 pixels, (~426 ppi density)
- Aspect ratio: 1.0758:1
- Refresh rate: 120 Hz
Scoring
Sub-scores and attributes included in the calculations of the global score.
OnePlus Open
137
display
152
Samsung Galaxy S24 Ultra
Best: Samsung Galaxy S24 Ultra (164)
144
Google Pixel 8
Best: Google Pixel 8 (165)
111
Samsung Galaxy Z Fold6
Best: Samsung Galaxy Z Fold6 (165)
159
Google Pixel 7 Pro
Best: Google Pixel 7 Pro (164)
Position in Global Ranking
56
th
4. Samsung Galaxy S24 Ultra
155
5. Samsung Galaxy Z Fold6
154
5. Samsung Galaxy S24+ (Exynos)
154
5. Samsung Galaxy S24 (Exynos)
154
11. Google Pixel 9 Pro Fold
152
12. Apple iPhone 15 Pro Max
151
17. Apple iPhone 16 Pro Max
150
17. Samsung Galaxy Z Flip6
150
22. Samsung Galaxy S23 Ultra
148
27. Samsung Galaxy A55 5G
147
30. Apple iPhone 14 Pro Max
146
32. Samsung Galaxy S24 FE
145
36. Samsung Galaxy Z Flip5
144
38. Asus Zenfone 11 Ultra
143
38. Samsung Galaxy A35 5G
143
41. Apple iPhone 13 Pro Max
142
41. Samsung Galaxy Z Fold5
142
47. Samsung Galaxy S23 FE
140
52. Honor Magic4 Ultimate
138
63. Samsung Galaxy S22 Ultra (Snapdragon)
135
63. Xiaomi Redmi Note 13 Pro Plus 5G
135
68. Samsung Galaxy S22+ (Exynos)
134
71. Samsung Galaxy Z Flip4
133
71. Samsung Galaxy S22 Ultra (Exynos)
133
71. Samsung Galaxy S22 (Snapdragon)
133
71. Vivo X80 Pro (MediaTek)
133
76. Samsung Galaxy S22 (Exynos)
132
81. Samsung Galaxy S21 Ultra 5G (Exynos)
131
81. Vivo X80 Pro (Snapdragon)
131
85. Samsung Galaxy Z Fold4
130
85. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
85. Samsung Galaxy S21 FE 5G (Snapdragon)
130
96. Samsung Galaxy A54 5G
129
100. Apple iPhone 12 Pro Max
127
104. Vivo X60 Pro 5G (Snapdragon)
126
121. Motorola Edge 30 Pro
123
125. Apple iPhone 11 Pro Max
122
125. Motorola Edge 40 Pro
122
129. Apple iPhone SE (2022)
120
135. Samsung Galaxy A52 5G
114
137. Motorola Razr 40 Ultra
113
140. Crosscall Stellar-X5
109
141. Samsung Galaxy A53 5G
108
147. Samsung Galaxy A22 5G
82
Position in Ultra-Premium Ranking
40
th
3. Samsung Galaxy S24 Ultra
155
4. Samsung Galaxy Z Fold6
154
4. Samsung Galaxy S24+ (Exynos)
154
8. Google Pixel 9 Pro Fold
152
9. Apple iPhone 15 Pro Max
151
13. Apple iPhone 16 Pro Max
150
13. Samsung Galaxy Z Flip6
150
17. Samsung Galaxy S23 Ultra
148
23. Apple iPhone 14 Pro Max
146
27. Samsung Galaxy Z Flip5
144
29. Asus Zenfone 11 Ultra
143
31. Apple iPhone 13 Pro Max
142
31. Samsung Galaxy Z Fold5
142
37. Honor Magic4 Ultimate
138
44. Samsung Galaxy S22 Ultra (Snapdragon)
135
46. Samsung Galaxy S22+ (Exynos)
134
48. Samsung Galaxy Z Flip4
133
48. Samsung Galaxy S22 Ultra (Exynos)
133
48. Vivo X80 Pro (MediaTek)
133
55. Samsung Galaxy S21 Ultra 5G (Exynos)
131
55. Vivo X80 Pro (Snapdragon)
131
59. Samsung Galaxy Z Fold4
130
59. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
67. Apple iPhone 12 Pro Max
127
80. Apple iPhone 11 Pro Max
122
82. Motorola Razr 40 Ultra
113
Pros
- Good color rendering when viewing photos in the gallery and web browsing
- Good readability, which improves in outdoor conditions thanks to the anti-reflection film
- Smooth interactions when playing video games and scrolling on the web
Cons
- Disappointing HDR video experience under dark room due to lack of brightness and details
- Occasionally visible frames mismatches when playing video games
The OnePlus Open, the first foldable device from OnePlus, showed an impressive performance in our display testing, with strong results in readability, color, and artifacts.
The OnePlus Open’s readability was among the best we have seen so far, scoring near the top of the readability attribute. Color was also a high-performing attribute, coming close to a high score. Both attributes contributed to a generally pleasant experience when viewing photos or browsing the web.
Although the screen showed good brightness in indoor conditions, when it came to watching HDR videos, the screen lacked brightness and details, detracting from a pleasant experience.
One of the challenging aspects of a foldable screen for manufacturers is de-emphasizing the presence of the middle crease when the phone is unfolded. But the OnePlus Open surprised us in this respect. We evaluated the device unfolded and found the Flexi-fluid AMOLED screen’s crease to be barely visible. In addition, when sliding a finger across the display, the crease was also barely noticeable to the touch. Touch interactions on the OnePlus Open, however, were smooth when scrolling the internet or when playing video games.
The device’s handling of artifacts also earned it a top score in this attribute.
Test summary
About DXOMARK Display tests: For scoring and analysis in our smartphone and other display reviews, DXOMARK engineers perform a variety of objective and perceptual tests under controlled lab and real-life conditions. Note that we evaluate display attributes using only the device’s built-in display hardware and its still image (gallery) and video apps at their default settings. (For in-depth information about how we evaluate smartphone and other displays, check out our articles, “How DXOMARK tests display quality” and “A closer look at DXOMARK Display testing.”
The following section gathers key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Detailed performance evaluations under the form of reports are available upon request. Do not hesitate to contact us.
Readability
152
Samsung Galaxy S24 Ultra
Samsung Galaxy S24 Ultra
How Display Readability score is composed
Readability evaluates how easily and comfortably users can read still content (photos & web) on the display under different real-life conditions. DXOMARK uses its Display Bench to recreate ambient light conditions ranging from total darkness to bright sunlight. In addition to laboratory tests, perceptual analysis is also made in real-life environments.
Luminance under various lighting conditions
Readability in an indoor (1000 lux) environment
From left to right: OnePlus Open, Xiaomi Mix Fold 3, Google Pixel Fold
(Photos for illustration only)
Readability in a sunlight (>90 000 lux) environment
From left to right: OnePlus Open, Xiaomi Mix Fold 3, Google Pixel Fold
(Photos for illustration only)
Luminance uniformity measurement
This graph shows the uniformity of the display with a 20% gray pattern. The more visible the green color, the more uniform the display.
Color
144
Google Pixel 8
Google Pixel 8
How Display Color score is composed
The color attribute evaluates the capacity of the device to accurately reproduce colors. The measurements taken are for fidelity, white point color, and gamut coverage. We perform color evaluations for different lighting conditions to see how well the device can manage color in the surrounding environment. Colors are measured using a spectrophotometer in a controlled lighting environment. Perceptual analysis of color rendering is against the reference pattern displayed on a calibrated professional monitor.
White point under D65 illuminant at 1000 lux
Color rendering indoors (1000 lux)
Clockwise from top left: OnePlus Open, Xiaomi Mix Fold 3, Google Pixel Fold
(Photos for illustration only)
Color rendering in sunlight (>90 000 lux)
Clockwise from top left: OnePlus Open, Xiaomi Mix Fold 3, Google Pixel Fold
(Photos for illustration only)
Color fidelity measurements

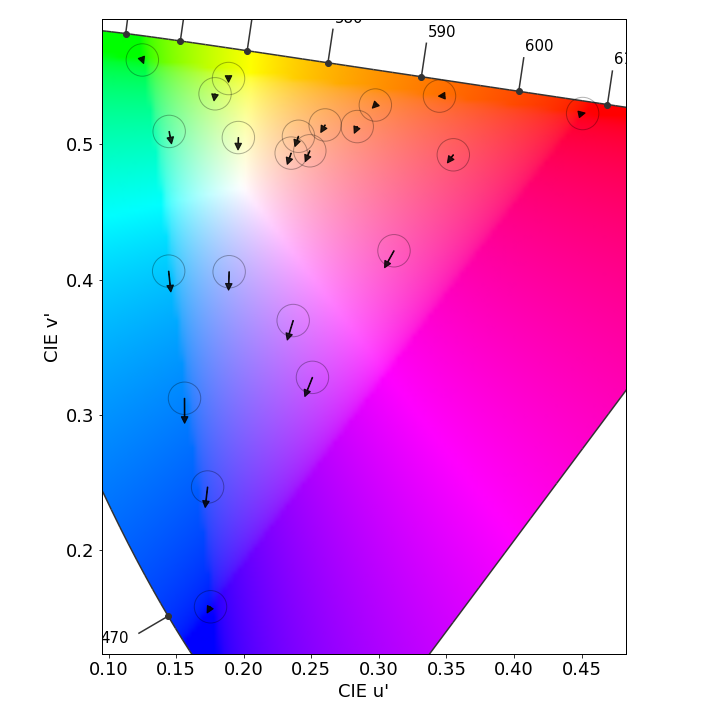

OnePlus Open, color fidelity at 1000 lux in the sRGB color space

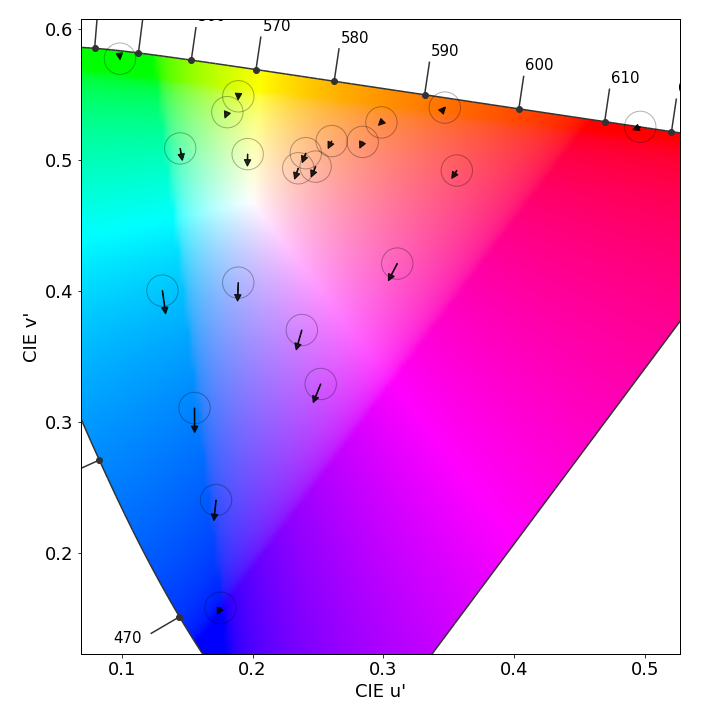

OnePlus Open, color fidelity at 1000 lux in the Display-P3 color space
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes.
Color behavior on angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Video
111
Samsung Galaxy Z Fold6
Samsung Galaxy Z Fold6
How Display Video score is composed
Our video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling of each device in indoor and low-light conditions. We measure tone mapping, color gamut, brightness and contrast of the display. We perform perceptual analysis against our professional reference monitor (Sony BVM-HX310) to ensure that the rendering respects the artistic intent.
Video brightness at 10% APL in the dark ( < 5 lux)
Video rendering in a low-light (0 lux) environment
Clockwise from top left: OnePlus Open, Xiaomi Mix Fold 3, Google Pixel Fold
(Photos for illustration only)
Gamut coverage for video content
The primary colors are measured both in HDR10 and SDR. The extracted color gamut shows the extent of the color area that the device can render. To respect the artistic intent, the measured gamut should match the master color space of each video.
How Display Motion score is composed
The motion attribute evaluates the handling of dynamic contents. Frame drops, motion blur, and playback artifacts are scrutinized using games and videos.
Video frame drops
These long exposure photos present the number of frame irregularities in a 30-second video. A good performance shows a regular pattern (either a flat gray image or a pull-down pattern).
Touch
159
Google Pixel 7 Pro
Google Pixel 7 Pro
How Display Touch score is composed
To evaluate touch, DXOMARK uses a touch robot and a high-speed camera to play and record a set of scenarios for smoothness, accuracy and response-time evaluation.
Average Touch Response Time OnePlus Open
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
How Display Artifacts score is composed
Evaluating artifacts means checking for the performance, image rendering and motion flaws that can affect the end-user experience. DXOMARK measures precisely the device’s reflectance and the presence of flicker, and assesses the impact of residual aliasing when playing video games, among other characteristics.
Average Reflectance (SCI) OnePlus Open
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Reflectance (SCI)
Measurements above show the reflection of the device within the visible spectrum range (400 nm to 700 nm). It includes both diffuse and specular reflection.
PWM Frequency OnePlus Open
1440 Hz
Bad
Good
Bad
Great
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the main flicker frequency. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue. Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be safer for users.
Aliasing (closeup)
OnePlus Open
(Photos for illustration only)
