We put the Honor Magic7 Pro through our rigorous DXOMARK Display test suite to measure its performance across four criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.
Overview
Key display specifications
- 6.8 inches OLED
- Dimensions: 162.7 x 77.1 x 8.8 mm (6.41 x 3.04 x 0.35 inches)
- Resolution: 1280 x 2800 pixels
- Aspect ratio: 19.5:9
- Refresh rate: 120 Hz
Scoring
Sub-scores and attributes included in the calculations of the global score.
Honor Magic7 Pro
153
display
Position in Global Ranking
13th
13th
1. Samsung Galaxy S25 Ultra
160
2. Google Pixel 9 Pro XL
158
2. Google Pixel 9 Pro
158
4. Honor Magic6 Pro
157
4. Samsung Galaxy S25+
157
4. Samsung Galaxy S25
157
7. Google Pixel 9
156
8. Samsung Galaxy S24 Ultra
155
9. Google Pixel 8 Pro
154
9. Samsung Galaxy Z Fold6
154
9. Samsung Galaxy S24+ (Exynos)
154
9. Samsung Galaxy S24 (Exynos)
154
13. Google Pixel 8
153
13. Honor Magic7 Pro
153
13. Vivo X100 Pro
153
16. Google Pixel 9 Pro Fold
152
17. Apple iPhone 15 Pro Max
151
17. Apple iPhone 15 Pro
151
17. Honor Magic V2
151
17. Honor Magic5 Pro
151
17. Honor 200 Pro
151
22. Apple iPhone 16 Pro Max
150
22. Apple iPhone 16 Pro
150
22. Samsung Galaxy Z Flip6
150
25. Honor Magic V3
149
25. Samsung Galaxy S23
149
27. Google Pixel 7 Pro
148
27. Huawei Pocket 2
148
27. Huawei Mate 60 Pro+
148
27. Huawei Mate 60 Pro
148
27. Samsung Galaxy S23 Ultra
148
32. Honor 200
147
32. Samsung Galaxy S23+
147
32. Samsung Galaxy A55 5G
147
35. Apple iPhone 14 Pro Max
146
35. Apple iPhone 14 Pro
146
37. Google Pixel Fold
145
37. Google Pixel 8a
145
37. Samsung Galaxy S24 FE
145
37. Vivo X Fold3 Pro
145
41. Oppo Find X7 Ultra
144
41. Samsung Galaxy Z Flip5
144
43. Asus Zenfone 11 Ultra
143
43. Huawei P60 Pro
143
43. OnePlus 13
143
43. Samsung Galaxy A35 5G
143
43. Xiaomi 14T Pro
143
48. Apple iPhone 16
142
48. Apple iPhone 13 Pro Max
142
48. Oppo Find N2 Flip
142
48. Samsung Galaxy Z Fold5
142
48. Xiaomi 14T
142
53. Apple iPhone 13 Pro
141
54. Apple iPhone 15 Plus
140
54. Apple iPhone 15
140
54. Honor 90
140
54. Samsung Galaxy S23 FE
140
54. Xiaomi 14 Ultra
140
59. Xiaomi Redmi Note 14 Pro+ 5G
139
60. Apple iPhone 14 Plus
138
60. Apple iPhone 14
138
60. Honor Magic4 Ultimate
138
60. Oppo Find X6 Pro
138
64. OnePlus Open
137
64. Oppo Find X5 Pro
137
64. Vivo X Fold
137
64. Xiaomi 14
137
68. Google Pixel 7
136
68. Honor Magic Vs
136
68. Motorola Edge 50 Neo
136
71. Apple iPhone 13
135
71. Google Pixel 7a
135
71. Samsung Galaxy S22 Ultra (Snapdragon)
135
71. Vivo X90 Pro+
135
71. Xiaomi Redmi Note 13 Pro Plus 5G
135
76. Huawei P50 Pro
134
76. Nothing Phone (2)
134
76. Samsung Galaxy S22+ (Exynos)
134
79. Huawei Mate 50 Pro
133
79. Samsung Galaxy Z Flip4
133
79. Samsung Galaxy S22 Ultra (Exynos)
133
79. Samsung Galaxy S22 (Snapdragon)
133
79. Vivo X80 Pro (MediaTek)
133
84. Asus ROG Phone 7
132
84. Samsung Galaxy S22 (Exynos)
132
84. Vivo X90 Pro
132
84. Xiaomi Mix Fold 3
132
84. Xiaomi 13
132
89. Samsung Galaxy S21 Ultra 5G (Exynos)
131
89. Sony Xperia 5 IV
131
89. Vivo X80 Pro (Snapdragon)
131
89. Xiaomi 13 Pro
131
93. Apple iPhone 13 mini
130
93. Google Pixel 6 Pro
130
93. Honor Magic4 Pro
130
93. Oppo Find X5
130
93. Realme GT 2 Pro
130
93. Samsung Galaxy Z Fold4
130
93. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
93. Samsung Galaxy S21 FE 5G (Snapdragon)
130
93. Vivo X70 Pro+
130
93. Xiaomi 13 Ultra
130
93. Xiaomi 12T
130
104. Samsung Galaxy A54 5G
129
104. Xiaomi 13T Pro
129
104. Xiaomi 13T
129
107. Oppo Find N2
128
108. Apple iPhone 12 Pro Max
127
108. Asus ROG Phone 6
127
108. Sony Xperia 5 V
127
108. Xiaomi 12T Pro
127
112. Asus Zenfone 10
126
112. Oppo Find X6
126
112. Sony Xperia 1 IV
126
112. Vivo X60 Pro 5G (Snapdragon)
126
116. Google Pixel 6a
125
116. Google Pixel 6
125
116. Honor 70
125
116. Oppo Find X3 Pro
125
116. Xiaomi Mi 11 Ultra
125
116. Xiaomi Mi 11
125
116. Xiaomi 12S Ultra
125
123. Apple iPhone 12 Pro
124
123. Motorola Razr 50
124
123. OnePlus 11
124
123. OnePlus 10 Pro
124
123. OnePlus 9 Pro
124
123. Oppo Reno8 5G
124
129. Motorola Edge 30 Pro
123
129. Oppo Reno8 Pro 5G
123
129. Oppo Find X3 Neo
123
129. Xiaomi 12 Pro
123
133. Apple iPhone 11 Pro Max
122
133. Motorola Edge 40 Pro
122
133. Nothing Phone(1)
122
136. Apple iPhone 12
121
137. Apple iPhone SE (2022)
120
137. Realme GT 5G
120
139. Fairphone 5
119
139. Xiaomi 12
119
141. Asus Zenfone 8
115
141. Oppo Reno6 5G
115
143. Realme GT Neo 2 5G
114
143. Samsung Galaxy A52 5G
114
145. Motorola Razr 40 Ultra
113
145. Oppo Find X5 Lite
113
147. POCO F4 GT
111
148. Crosscall Stellar-X5
109
149. Samsung Galaxy A53 5G
108
150. Sony Xperia 10 V
105
151. Sony Xperia 10 IV
104
152. Xiaomi Mi 10 Ultra
103
153. Crosscall Stellar-M6
101
154. Black Shark 5 Pro
100
155. Vivo X80 Lite 5G
99
156. Samsung Galaxy A22 5G
82
Position in Ultra-Premium Ranking
10th
10th
1. Samsung Galaxy S25 Ultra
160
2. Google Pixel 9 Pro XL
158
2. Google Pixel 9 Pro
158
4. Honor Magic6 Pro
157
4. Samsung Galaxy S25+
157
6. Samsung Galaxy S24 Ultra
155
7. Google Pixel 8 Pro
154
7. Samsung Galaxy Z Fold6
154
7. Samsung Galaxy S24+ (Exynos)
154
10. Honor Magic7 Pro
153
10. Vivo X100 Pro
153
12. Google Pixel 9 Pro Fold
152
13. Apple iPhone 15 Pro Max
151
13. Apple iPhone 15 Pro
151
13. Honor Magic V2
151
13. Honor Magic5 Pro
151
17. Apple iPhone 16 Pro Max
150
17. Apple iPhone 16 Pro
150
17. Samsung Galaxy Z Flip6
150
20. Honor Magic V3
149
21. Google Pixel 7 Pro
148
21. Huawei Pocket 2
148
21. Huawei Mate 60 Pro+
148
21. Huawei Mate 60 Pro
148
21. Samsung Galaxy S23 Ultra
148
26. Samsung Galaxy S23+
147
27. Apple iPhone 14 Pro Max
146
27. Apple iPhone 14 Pro
146
29. Google Pixel Fold
145
29. Vivo X Fold3 Pro
145
31. Oppo Find X7 Ultra
144
31. Samsung Galaxy Z Flip5
144
33. Asus Zenfone 11 Ultra
143
33. Huawei P60 Pro
143
33. OnePlus 13
143
36. Apple iPhone 13 Pro Max
142
36. Oppo Find N2 Flip
142
36. Samsung Galaxy Z Fold5
142
39. Apple iPhone 13 Pro
141
40. Apple iPhone 15 Plus
140
40. Xiaomi 14 Ultra
140
42. Apple iPhone 14 Plus
138
42. Honor Magic4 Ultimate
138
42. Oppo Find X6 Pro
138
45. OnePlus Open
137
45. Oppo Find X5 Pro
137
45. Vivo X Fold
137
48. Honor Magic Vs
136
49. Samsung Galaxy S22 Ultra (Snapdragon)
135
49. Vivo X90 Pro+
135
51. Huawei P50 Pro
134
51. Samsung Galaxy S22+ (Exynos)
134
53. Huawei Mate 50 Pro
133
53. Samsung Galaxy Z Flip4
133
53. Samsung Galaxy S22 Ultra (Exynos)
133
53. Vivo X80 Pro (MediaTek)
133
57. Asus ROG Phone 7
132
57. Vivo X90 Pro
132
57. Xiaomi Mix Fold 3
132
60. Samsung Galaxy S21 Ultra 5G (Exynos)
131
60. Sony Xperia 5 IV
131
60. Vivo X80 Pro (Snapdragon)
131
60. Xiaomi 13 Pro
131
64. Google Pixel 6 Pro
130
64. Honor Magic4 Pro
130
64. Oppo Find X5
130
64. Samsung Galaxy Z Fold4
130
64. Samsung Galaxy S21 Ultra 5G (Snapdragon)
130
64. Vivo X70 Pro+
130
64. Xiaomi 13 Ultra
130
71. Oppo Find N2
128
72. Apple iPhone 12 Pro Max
127
72. Asus ROG Phone 6
127
72. Sony Xperia 5 V
127
75. Oppo Find X6
126
75. Sony Xperia 1 IV
126
77. Oppo Find X3 Pro
125
77. Xiaomi Mi 11 Ultra
125
77. Xiaomi 12S Ultra
125
80. Apple iPhone 12 Pro
124
80. Motorola Razr 50
124
80. OnePlus 10 Pro
124
80. OnePlus 9 Pro
124
84. Xiaomi 12 Pro
123
85. Apple iPhone 11 Pro Max
122
85. Motorola Edge 40 Pro
122
87. Motorola Razr 40 Ultra
113
88. Crosscall Stellar-X5
109
89. Xiaomi Mi 10 Ultra
103
Pros

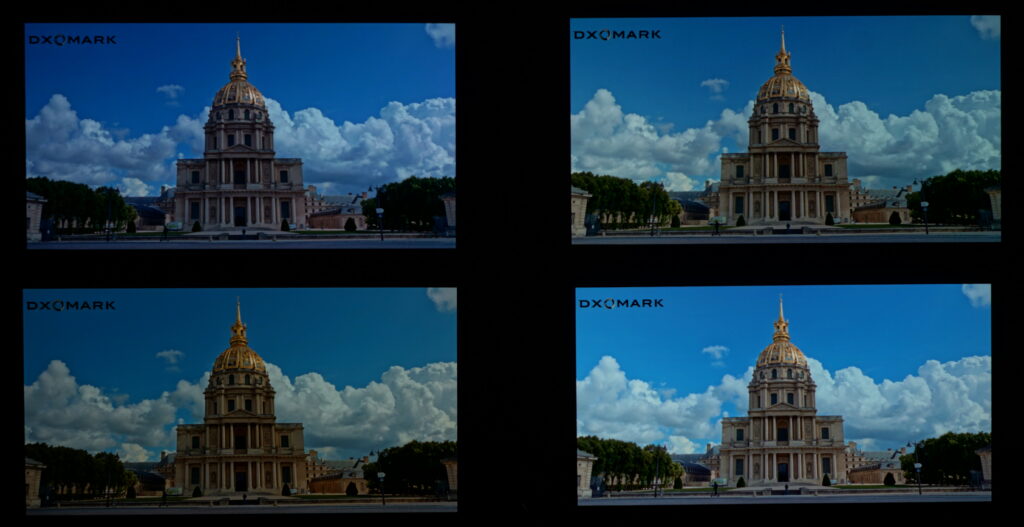

- Good video rendering in low light and indoors
- Smooth and precise touch experience
- Adapted luminance in low light and indoors
Cons
- Lacks readability under sunlight
- Lacks an extra-dim mode for night usage
- Below-average touch response time for its class
The Honor Magic7 Pro display performed well in our tests, providing a good user experience across all technical attributes, especially in touch.
The Honor Magic7 Pro’s reading experience is satisfactory across typical lighting conditions, but it has shortcomings when it comes to challenging environments. The minimum luminance level is a bit higher than that of competitors in this segment, something that impacts the user’s comfort in specific dark environments, such as viewing the screen in the middle of the night.
However, while the device’s peak luminance was lower than some competitors, the outdoor brightness level remained consistent for all types of displayed content, which was not the case for most competitors’ devices, whose display luminance decreased as white areas on the screen increased.
The occurrence of temporal light artifacts was minimized thanks to the high pulse width modulation, measured around 4,330 Hz.
The screen’s colors were slightly above average, remaining generally accurate and quite stable outdoors, but our testers did note some visible color shifts when holding the device at an angle. Still, at an angle, the brightness performance was above average at low angles (<20°).
The HDR video-watching experience was satisfying and comfortable, with very good brightness and contrast in low light. Under indoor lighting conditions, the rendering was comfortable. In SDR, the device provided a good adaptation of brightness and contrast in all tested conditions. Although the Honor Magic7 Pro’s frame-drop rate was not high enough to impact the user experience, our test showed a slightly higher frame-drop rate than the competition, even compared with last year’s top-end models.
In touch, the Honor Magic7 Pro came close to reaching the top score, with its smooth scrolling as well as accurate navigation. However, gamers who like to play on their smartphones should take note of the Honor Magic7 Pro’s touch response time, which at an average of 79 milliseconds, was below that of its direct competitors.
Test summary
About DXOMARK Display tests: For scoring and analysis, a device undergoes a series of objective and perceptual tests in controlled lab and real-life conditions. The DXOMARK Display score takes into account the overall user experience the screen provides, considering the hardware capacity and the software tuning. In testing, only factory-installed video and photo apps are used. More in-depth details about how DXOMARK tests displays are available in the article “A closer look at DXOMARK Display testing.”
The following section focuses on the key elements of our exhaustive tests and analyses performed in DXOMARK laboratories. Full reports with detailed performance evaluations are available upon request. To order a copy, please contact us.
Readability
150
Honor Magic7 Pro
164
Samsung Galaxy S24 Ultra
How Display Readability score is composed
Readability evaluates the user’s ease and comfort of viewing still content, such as photos or a web page, on the display under different lighting conditions. Our measurements run in the labs are completed by perceptual testing and analysis.
Luminance under various lighting conditions
This graph shows the screen luminance in environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Contrast under various lighting conditions
This graph shows the screen’s contrast levels in lighting environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Luminance vs Viewing Angle
This graph presents how the luminance drops as viewing angles increase.
Skin-tone rendering in an indoor (1000 lux) environment
From left to right: Honor Magic7 Pro, Samsung Galaxy S24 Ultra, Google Pixel 9 Pro XL, Apple iPhone 16 Pro Max
(Photos for illustration only)
Skin-tone rendering in a sunlight (>90 000 lux) environment
From left to right: Honor Magic7 Pro, Samsung Galaxy S24 Ultra, Google Pixel 9 Pro XL, Apple iPhone 16 Pro Max
(Photos for illustration only)
Average Reflectance (SCI) Honor Magic7 Pro
5.1 %
Low
Good
Bad
High
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Average reflectance is computed based on the spectral reflectance in the visible spectrum range (see graph below) and human spectral sensitivity.
Average reflectance is computed based on the spectral reflectance in the visible spectrum range (see graph below) and human spectral sensitivity.
Reflectance (SCI)
Wavelength (horizontal axis) defines light color, but also our capacity to see it; for example, UV is a very low wavelength that the human eye cannot see; Infrared is a high wavelength that the human eye also cannot see). White light is composed of all wavelengths between 400 nm and 700 nm, i.e. the range the human eye can see. Measurements above show the reflection of the devices within the visible spectrum range (400 nm to 700 nm).
Uniformity
This graph shows the distribution of luminance throughout the entire display panel. Uniformity is measured with a 20% gray pattern, with bright green indicating ideal luminance. An evenly spread-out bright green color on the screen indicates that the display’s brightness is uniform. Other colors indicate a loss of uniformity.
PWM Frequency Honor Magic7 Pro
4300 Hz
Bad
Good
Bad
Great
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the most important modulation. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue.
Color
151
Honor Magic7 Pro
165
Google Pixel 8
How Display Color score is composed
Color evaluations are performed in different lighting conditions to see how well the device manages color with the surrounding environment. Devices are tested with sRGB and Display-P3 image patterns. Both faithful mode and default mode are used for our evaluation. Our measurements run in the labs are completed by perceptual testing & analysis.
White point color under D65 illuminant at 830 lux
This graph shows the white point coordinates for the image pattern using the default or the faithful mode. D65 illuminant (6500 Kelvin) is a standard that defines the color of white at midday; it is used for display calibration as a white reference, therefore devices are expected to be at or close to the D65 white point.
Color fidelity
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes. The tested color mode is the most faithful proposed by each device, and a color correction is applied to account for the different white points of each device.
White color shift with angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Circadian Action Factor Honor Magic7 Pro
0.73
Good
Good
Bad
Bad
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
The circadian action factor is a metric that defines how light impacts the human sleep cycle. It is the ratio of the light energy contributing to sleep disturbances (centered around 450 nm, representing blue light) over the light energy contributing to our perception (covering 400 nm to 700 nm and centered on 550 nm, which is green light). A high circadian action factor means that the ambient light contains strong blue-light energy and is likely to affect the body’s sleep cycle, while a low circadian action factor implies the light has weak blue-light energy and is less likely to affect sleeping patterns.
Spectrum of white emission with Night mode ON
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
Spectrum of white emission with Night mode OFF
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
Video
155
Honor Magic7 Pro
167
Samsung Galaxy S25 Ultra
How Display Video score is composed
The video attribute evaluates the Standard Dynamic Range (SDR) and High Dynamic Range (HDR10) video handling in indoor and low-light conditions . Our measurements run in the labs are completed by perceptual testing and analysis.
Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.
Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.
Video rendering in a low-light (0 lux) environment
Clockwise from top left: Honor Magic7 Pro, Samsung Galaxy S24 Ultra, Google Pixel 9 Pro XL, Apple iPhone 16 Pro Max
(Photos for illustration only)
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
Gamut coverage for video content under 0 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
Gamut coverage for video content under 830 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
SDR Video Frame Drops FHD at 30 fps
1.1 %
Few
Good
Bad
Many
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
HDR Video Frame Drops UHD at 30 fps
0.8 %
Few
Good
Bad
Many
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
These gauges present the percentage of frame irregularities in a 30-second video. These irregularities are not necessarily perceived by users (unless they are all located at the same time stamp) but are an indicator of performance.
Touch
160
Honor Magic7 Pro
164
Google Pixel 7 Pro
How Display Touch score is composed
We evaluate the touch attributes under many types of contents where touch is key, and requires different behaviors such as gaming (quick touch to response time), web (smooth scrolling of the page) and images (accurate and smooth navigation from one image to another).
Average Touch Response Time Honor Magic7 Pro
79 ms
Fast
Good
Bad
Slow
Honor Magic7 Pro
Samsung Galaxy S24 Ultra
Google Pixel 9 Pro XL
Apple iPhone 16 Pro Max
Touch To Display response time
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
