Google Pixel 9 Display test

OTHER AVAILABLE TESTS FOR THIS DEVICE

We put the Google Pixel 9 through our rigorous DXOMARK Display test suite to measure its performance across four criteria. In this test results, we will break down how it fared in a variety of tests and several common use cases.

Overview

Key display specifications

  • 6.3 inches OLED
  • Dimensions: 152.8 x 72 x 8.5 mm (6 x 2.8 x 0.3 inches)
  • Resolution: 1080 x 2424 pixels, (~422 ppi density)
  • Aspect ratio: 20:9
  • Refresh rate: 120 Hz

Scoring

Sub-scores and attributes included in the calculations of the global score.

Google Pixel 9 Google Pixel 9
156
display
153

164

163

165

153

165

155

164

Pros

  • Faithful and well-rendered colors in most tested conditions
  • Well-adapted for readability in most environments
  • HDR10 videos are well rendered in low light and indoors
  • Fast and accurate touch

Cons

  • Undersaturated colors in a dark environment
  • Slightly low luminance when viewing SDR video
  • Occasional unwanted touches when holding the device in landscape orientation

The Google Pixel 9’s display showed a powerful performance in our tests, placing it just slightly behind Google’s flagship Pixel 9 Pro XL in our ranking.

As the base model of the Pixel 9 series, the device delivered exceptionally strong performances in all attributes, particularly in color, making it quite performant in all use cases from scrolling the internet to viewing videos in various light conditions. Although the Pixel 9 didn’t break the Pixel 8’s high color score, the Pixel 9’s natural colors were faithful and very well-rendered in most conditions. In other conditions, however, such as the dark, colors could sometimes appear a little desaturated, which slightly reduced the gamut.

The device’s readability was good in general as luminance was well adapted in most tested conditions. In extremely bright outdoor conditions (above 90,000 lux), such as sunlight,  we measured a peak luminance at 2,670 cd/m² with the high brightness mode activated, compared with the Pixel 8’s 1,600 cd/m², making the screen’s contents readable.

HDR10 videos were pleasant to watch on the Pixel 9 screen in low-light and indoor conditions. Videos contained lots of natural details, and the device managed frame mismatches very well. When showing SDR videos, however, the screen lacked a little bit of brightness at the default settings.

In touch, the Pixel 9’s interactions were fast and accurate. But when holding the device in a landscape orientation, the screen was susceptible to occasional unwanted touches from the palm. The Pixel 9’s screen was also quite smooth in all test cases, including web browsing and navigation, particularly at the 120 Hz refresh rate, which must be manually set from the 60 Hz default.

Test summary

About DXOMARK Display tests: For scoring and analysis, a device undergoes a series of
objective and perceptual tests in controlled lab and real-life conditions. The DXOMARK Display score takes into
account the overall user experience the screen provides, considering the hardware capacity and the software tuning.
In testing, only factory-installed video and photo apps are used.  More in-depth details about how DXOMARK tests
displays are available in the article “A closer look at DXOMARK Display testing.”

The following section focuses on the key elements of our exhaustive tests and analyses performed in DXOMARK
laboratories. Full reports with detailed performance evaluations are available upon request. To order a copy, please
contact us.

Readability

153

Google Pixel 9

164

Samsung Galaxy S24 Ultra
How Display Readability score is composed

Readability evaluates the user’s ease and comfort
of viewing still content, such as photos or a web page, on the display under different lighting conditions. Our
measurements run in the labs are completed by perceptual testing and analysis.

Luminance under various lighting conditions
This graph shows the screen luminance in environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Contrast under various lighting conditions
This graph shows the screen’s contrast levels in lighting environments that range from total darkness to outdoor conditions. In our labs, the indoor environment (250 lux to 830 lux) simulates the artificial and natural lighting conditions commonly seen in homes (with medium diffusion); the outdoor environment (from 20,000 lux) replicates a situation with highly diffused light.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Photo EOTF
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for still images follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under intensive lighting conditions (20,000 lux) in the low gray level regions.
Luminance vs Viewing Angle
This graph presents how the luminance drops as viewing angles increase.


Skin-tone rendering in an indoor (1000 lux) environment
From left to right: Google Pixel 9, Samsung Galaxy S24, Apple iPhone 15
(Photos for illustration only)
Skin-tone rendering in a sunlight (>90 000 lux) environment
From left to right: Google Pixel 9, Samsung Galaxy S24, Apple iPhone 15
(Photos for illustration only)
Average Reflectance (SCI) Google Pixel 9
4.9 %
Low
Good
Bad
High
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
SCI stands for Specular Component Included, which measures both the diffuse reflection and the specular reflection. Reflection from a simple glass sheet is around 4%, while it reaches about 6% for a plastic sheet. Although smartphones’ first surface is made of glass, their total reflection (without coating) is usually around 5% due to multiple reflections created by the complex optical stack.
Average reflectance is computed based on the spectral reflectance in the visible spectrum range (see graph below) and human spectral sensitivity.
Reflectance (SCI)
Wavelength (horizontal axis) defines light color, but also our capacity to see it; for example, UV is a very low wavelength that the human eye cannot see; Infrared is a high wavelength that the human eye also cannot see). White light is composed of all wavelengths between 400 nm and 700 nm, i.e. the range the human eye can see. Measurements above show the reflection of the devices within the visible spectrum range (400 nm to 700 nm).

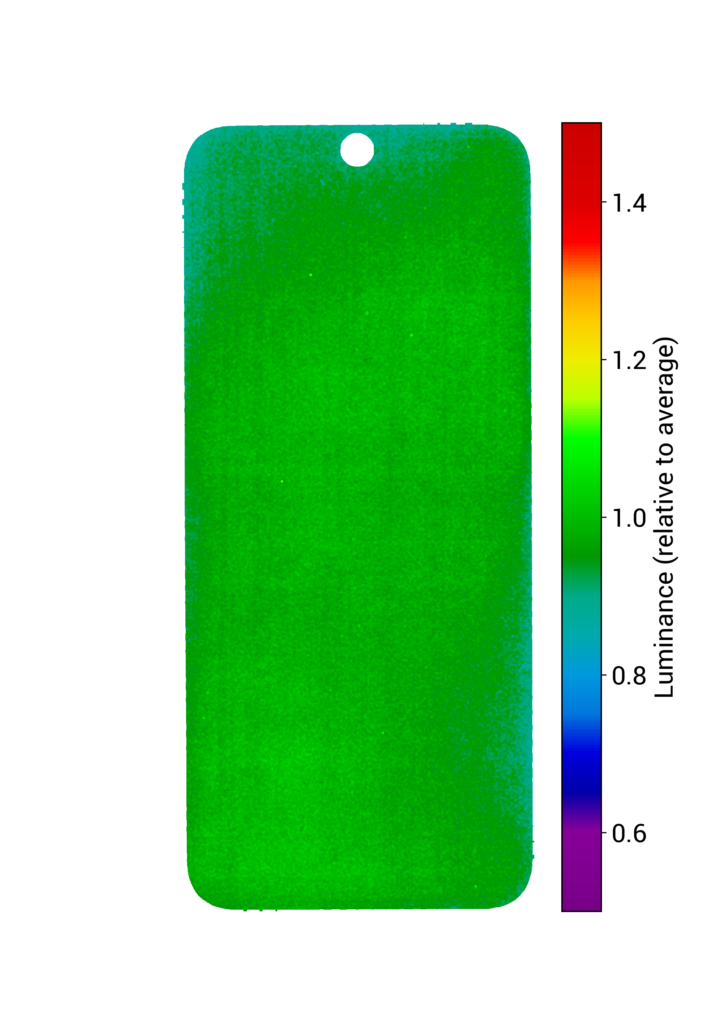

Uniformity
This graph shows the distribution of luminance throughout the entire display panel. Uniformity is
measured with a 20% gray pattern, with bright green indicating ideal luminance. An evenly spread-out bright green color
on the screen indicates that the display’s brightness is uniform. Other colors indicate a loss of uniformity.
PWM Frequency Google Pixel 9
240 Hz
Bad
Good
Bad
Great
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
Displays flicker for 2 main reasons: refresh rate and Pulse Width Modulation. Pulse width modulation is a modulation technique that generates variable-width pulses to represent the amplitude of an analog input signal. This measurement is important for comfort because flickering at low frequencies can be perceived by some individuals, and in the most extreme cases, can induce seizures. Some experiments show that discomfort can appear at a higher frequency. A high PWM frequency (>1500 Hz) tends to be less disturbing for users.
Temporal Light Modulation
This graph represents the frequencies of lighting variation; the highest peak gives the most important modulation. The combination of a low frequency and a high peak is susceptible to inducing eye fatigue.

Color

163

Google Pixel 9

165

Google Pixel 8
How Display Color score is composed

Color evaluations are performed in different lighting
conditions to see how well the device manages color with the surrounding environment. Devices are tested with sRGB and
Display-P3 image patterns. Both faithful mode and default mode are used for our evaluation. Our measurements run in the
labs are completed by perceptual testing & analysis.

White point color under D65 illuminant at 830 lux
This graph shows the white point coordinates for the image pattern using the default or the faithful mode. D65 illuminant (6500 Kelvin) is a standard that defines the color of white at midday; it is used for display calibration as a white reference, therefore devices are expected to be at or close to the D65 white point.
Color fidelity
Each arrow represents the color difference between a target color pattern (base of the arrow) and its actual measurement (tip of the arrow). The longer the arrow, the more visible the color difference is. If the arrow stays within the circle, the color difference will be visible only to trained eyes. The tested color mode is the most faithful proposed by each device, and a color correction is applied to account for the different white points of each device.
White color shift with angle
This graph shows the color shift when the screen is at an angle. Each dot represents a measurement at a particular angle. Dots inside the inner circle exhibit no color shift in angle; those between the inner and outer circle have shifts that only trained experts will see; but those falling outside the outer circle are noticeable.
Circadian Action Factor Google Pixel 9
0.62
Good
Good
Bad
Bad
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
The circadian action factor is a metric that defines how light impacts the human sleep cycle. It is the ratio of the light energy contributing to sleep disturbances (centered around 450 nm, representing blue light) over the light energy contributing to our perception (covering 400 nm to 700 nm and centered on 550 nm, which is green light). A high circadian action factor means that the ambient light contains strong blue-light energy and is likely to affect the body’s sleep cycle, while a low circadian action factor implies the light has weak blue-light energy and is less likely to affect sleeping patterns.
Spectrum of white emission with Night mode ON
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.
Spectrum of white emission with Night mode OFF
Spectrum measurements of a white web page with BLF mode on and off. This graph shows the impact of blue light filtering on the whole spectrum. All other settings used are default, in particular, the luminance level follows the auto-brightness adaptation from the manufacturer.
The wavelength (horizontal axis) defines light color but also the capacity to see it. For example, UV, which has a very low wavelength, and infra-red, which has a high wavelength, are both not visible to the human eye. White light is composed of all wavelengths between 400 nm and 700 nm, which is the range visible to the human eye.

Video

153

Google Pixel 9

165

Samsung Galaxy Z Fold6
How Display Video score is composed

The video attribute evaluates the Standard Dynamic Range
(SDR) and High Dynamic Range (HDR10) video handling in indoor and low-light conditions . Our measurements run in the
labs are completed by perceptual testing and analysis.

Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.
Video peak luminance vs Lighting conditions
This bar chart presents the peak luminance measured for SDR and HDR10 content on a 10% window white pattern.


Video rendering in a low-light (0 lux) environment
Clockwise from top: Google Pixel 9, Samsung Galaxy S24, Apple iPhone 15
(Photos for illustration only)


Video rendering under indoor (1000 lux) environment
Clockwise from top: Google Pixel 9, Samsung Galaxy S24, Apple iPhone 15
(Photos for illustration only)
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
SDR video EOTF curve
These curves represent the SDR video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). The standard for SDR videos follows a 2.2 gamma. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
HDR10 video EOTF curve
These curves represent the HDR10 video tone distribution for white color.
The Electro-Optical Transfer Function (EOTF) defines how bits are converted into luminance out of the display. Gray levels (horizontal axis) represent the different shades from pure white (100% gray level) to pitch black (0% gray level). While the PQ (Perceptual Quantizer) standard is reminded here for reference, it cannot be a target for smartphones as it is an absolute standard whereas smartphones adapt their brightness to lighting conditions. The flatter the curves, the harder it is to perceive differences between consecutive shades. This phenomenon is more frequent under bright lighting conditions (830 lux) in the low gray levels region (< 30%).
Gamut coverage for video content under 0 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
Gamut coverage for video content under 830 lux environment
The primary colors are measured both in HDR10 and SDR. The solid color gamut measures the extent of the color area that the device can render in total darkness. The dotted line represents the content’s artistic intent. The measured gamut should match the master color space of each video.
SDR Video Frame Drops FHD at 30 fps
0.2 %
Few
Good
Bad
Many
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
HDR Video Frame Drops UHD at 30 fps
0.3 %
Few
Good
Bad
Many
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
These gauges present the percentage of frame irregularities in a 30-second video. These irregularities are not necessarily perceived by users (unless they are all located at the same time stamp) but are an indicator of performance.

Touch

155

Google Pixel 9

164

Google Pixel 7 Pro
How Display Touch score is composed

We evaluate the touch attributes under many types of
contents where touch is key, and requires different behaviors such as gaming (quick touch to response time), web (smooth
scrolling of the page) and images (accurate and smooth navigation from one image to another).

Average Touch Response Time Google Pixel 9
65 ms
Fast
Good
Bad
Slow
Google Pixel 9
Samsung Galaxy S24
Apple Iphone 15
Touch To Display response time
This response time test precisely evaluates the time elapsed between a single touch of the robot on the screen and the displayed action. This test is applied to activities that require high reactivity, such as gaming.
